Union Cross
Leading manufacturer of Union Cross Instrumentation Fittings, Union Cross Fittings Stockist, Union Cross Compression Fittings Supplier, Union Cross Pipe Fittings, Union Cross Tube Fittings Exporter
Stainless Steel Union Cross Fittings, SS 304 Union Cross, SS 316 Union Cross Instrumentation Pipe Fittings, Carbon Steel Union Cross Fittings, Copper Nickel Union Cross Fittings Supplier
Jaydeep Steels is the most organized manufacturer, supplier, exporter and stockist of high-quality Union Cross Fittings in different shapes, dimensions, and specifications. We manufactured these fitting using premium quality raw materials that are supplied by our trusted vendors and modern technology. Our comprehensive range of pipe fittings is most popular among our existing customers.

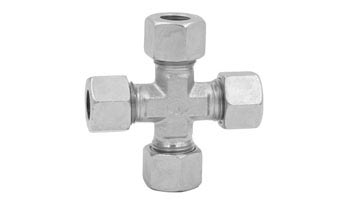

Union Cross is one of the kinds of ferrule pipe fittings that are used to connect four pipes in a cross. This fitting is to look like an English word letter “X”. It is used more often used when gas or liquid in pipe/tube supply in various directions. We manufacture these fittings according to international industry standards such as ASME, ASTM, AISI, IS, BS, DIN, etc.
Union Cross, Union Cross Manufacturer, Union Cross Exporters
Cu-Ni 90/10 Union Cross Fittings Supplier, Brass Alloy Union Cross, Cu-Ni 70/30 Union Cross Fittings, Copper Nickel Union Cross Exporter
The offered Union Cross Connectors are available in different material alloy grades like Stainless Steel Fittings, Carbon Steel Pipe Fittings, Alloy Steel Pipe Fittings, and Nickel Alloy Fittings as per the customer’s drawing and required specifications. These fittings possess high tensile strength, excellent corrosion & oxidation resistance, superior surface finish, and cost-effectiveness.
Union Cross Pipe Fittings have a wide range of applications in industries and piping systems. Want to learn more about these types of fittings Call Us today; Our expert will help you to choose perfect products for your applications.

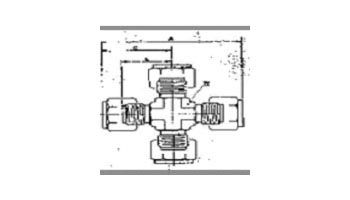

Technical Specification
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | L | D | NUT HEX W | L1 |
| 2-UCD | -200-4 | 2ECR2 | 0.62 | 1/8 | 0.09 | 7/16 | 0.60 | 1.24 | 0.50 | 7/16 | 1.76 |
| 3-UCD | -300-4 | 3ECR3 | 0.66 | 3/16 | 0.12 | 7/16 | 0.86 | 1.38 | 0.54 | 7/16 | 1.92 |
| 4-UCD | -400-4 | 4ECR4 | 0.77 | 1/4 | 0.19 | 9/16 | 0.70 | 1.54 | 0.60 | 9/16 | 2.12 |
| 5-UCD | -500-4 | 5ECR5 | 0.88 | 5/16 | 0.25 | 5/8 | 0.73 | 1.76 | 0.64 | 5/8 | 2.34 |
| 6-UCD | -600-4 | 6ECR6 | 0.91 | 3/8 | 0.28 | 13/16 | 0.76 | 1.82 | 0.66 | 11/16 | 2.40 |
| 8-UCD | -810-4 | 8ECR8 | 1.02 | 1/2 | 0.41 | 13/16 | 0.86 | 2.04 | 0.90 | 7/8 | 2.84 |
| 10-UCD | -1010-4 | 10ECR10 | 1.03 | 5/8 | 0.50 | 1.00 | 0.86 | 2.06 | 0.96 | 1.00 | 2.86 |
| 12-UCD | -1210-4 | 12ECR12 | 1.17 | 3/4 | 0.62 | 1-1/16 | 0.86 | 2.34 | 0.96 | 1-1/8 | 3.14 |
| 14-UCD | -1410-4 | 14ECR14 | 1.36 | 7/8 | 0.72 | 1-3/8 | 0.86 | 2.72 | 1.02 | 1-1/4 | 3.52 |
| 16-UCD | -1610-4 | 16ECR16 | 1.45 | 1 | 0.88 | 1-3/8 | 1.04 | 2.90 | 1.23 | 1-1/2 | 3.86 |
Material of Construction
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
| Alloy Steel | ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
 |
 |
Union Cross
| Imperial Tubing | |||||||||||
| Tube O.D (mm) |
A | C | L | W (inch) |
Min. bore | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||||
| 1/8 | 1.81 | 46.0 | 0.91 | 23.0 | 0.66 | 16.8 | 7/16 | 0.09 | 2.3 | ||
| 3/16 | 1.88 | 47.8 | 0.94 | 23.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 | ||
| 1/4 | 2.03 | 51.6 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 | ||
| 5/16 | 2.21 | 56.6 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 | ||
| 3/8 | 2.27 | 57.7 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 | ||
| 1/2 | 2.71 | 68.8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 | ||
| 5/8 | 2.89 | 73.4 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 | ||
| 3/4 | 3.09 | 78.5 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 | ||
| 7/8 | 3.27 | 83.1 | 1.63 | 41.4 | 1.25 | 31.8 | 1.5/16 | 0.75 | 19.1 | ||
| 1 | 3.82 | 97.0 | 1.91 | 48.5 | 1.44 | 36.6 | 1.5/16 | 0.88 | 22.4 | ||
| Metric tubing | |||||||||||
| Tube O.D (mm) |
A | C | L | W (inch) |
Min. bore (mm) |
||||||
| mm | mm | mm | |||||||||
| 3 | 46.8 | 23.4 | 16.8 | 7/16 | 2.4 | ||||||
| 4 | 48.2 | 24.1 | 17.5 | 7/16 | 3.0 | ||||||
| 6 | 51.6 | 25.8 | 18.3 | 7/16 | 4.8 | ||||||
| 8 | 56.2 | 28.1 | 20.6 | 9/16 | 6.4 | ||||||
| 10 | 66.0 | 33.0 | 25.4 | 3/4 | 7.9 | ||||||
| 12 | 69.4 | 34.7 | 24.6 | 3/4 | 9.5 | ||||||
| 16 | 72.6 | 36.3 | 26.2 | 7/8 | 12.7 | ||||||
| 18 | 79.0 | 39.5 | 29.4 | 1.1/16 | 15.1 | ||||||
Price List of Union Cross
Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Union Cross are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Union Cross.
Union Cross - Industries & Applications
Our Union Cross is used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Available Stock of Union Cross
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Union Cross.
How to Buy Union Cross
Jaydeep Steels is a leading stockist, distributor, and supplier of Union Cross from India. We maintain huge stocks and you can easily buy Union Cross and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Union Cross from Jaydeep Steels.
Union Cross Exporter:
Exporting Union Cross to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
Instrumentation Pipe Fittings
Pipe Fittings
Request a Quote
Get in touch with us today to get the best quote for your requirement. We can assure you of the most competitive prices.
Call : +91-8080220038
