Reducing Tee
Most Prominent Reducing Tee Pipe Fitting Manufacturer, Reducing Tee Instrumentation Pipe Fitting, Reducing Tee Connector, Reducing Tee Stockist, Reducing Tee Adapter, Reducing Tee Tubing, Reducing Tee with Ferrule Fittings Supplier
Stainless Steel Reducing Tee Fittings Stockist, Carbon Steel Reducing Tee Pipe Fittings, Nickel Alloy Reducing Tee Fittings, Alloy Steel Reducing Tee Pipes Fittings Exporter
Jaydeep Steels is the most prominent supplier, exporter and stockist of supreme quality Reducing Tee Pipe Fittings that are manufactured using high-quality raw materials that we get from our trusted vendors. We offered these fittings in different metric sizes as well as the maximum operating pressure of 12,000 psig. Our Stainless Steel 304 Reducing Tee is most popular among our existing customers.

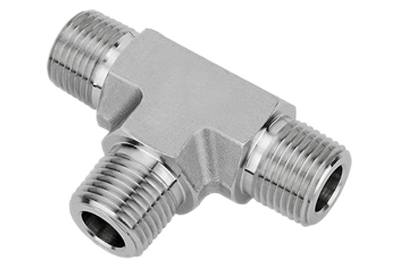

Reducing Tee is a type of ferrule fittings that are used to connect three pipes or tubes in a piping or tubing system. This instrumentation fittings look like an English letter ‘T’ that why it is known as Reducing Tee Ferrule Fittings. These fittings are more popular for its wide range of industrial applications such as chemical processing, oil & gas industries, pharmaceuticals and many more.
Reducing Tee, Reducing Tee Manufacturer, Reducing Tee Exporters
SS 304 Reducing Tee, SS 316 Reducing Tee Fittings, Copper Nickel Tee Fittings, Cu-Ni 90/10 Reducing Tee Fittings Stockholder
The offered Reducing Tee pipe fittings are manufactured according to different international standards like ASME, AISI, BS, IS, DIN, ASTM, etc. Our fittings have high tensile strength, greater working life, excellent surface finish, and cost-effectiveness.
We offer Reducing Tee pipe fittings in various material grades such as Stainless Steel Instrumentation Fittings, Carbon Steel Pipe Fittings, Nickel Alloy Fittings, and Alloy Steel Fittings. If you do not find your required material grade fittings or you want to buy these fittings Contact Us today; we are ready to manufacture these fittings as per your drawing and specifications at a reasonable cost.
Technical Specification
| Part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | ODT-ØT(INCHES) | LX | BODY HEX F | ODT-ØT1(INCHES) | Ø E | LY | ODT-ØT2(INCHES) | NUT HEX W | D | L1 | NUT HEX W1 | NUT HEX W2 |
| RUTD-10-6-8 | -1010 -3 -6 -8 | 0.86 | 5/8 | 1.13 | 1 | 3/8 | 0.28 | 1.53 | 1/2 | 1 | 0.96 | 3.06 | 7/8 | 11/16 |
| RUTD-10-8-6 | -1010 -3 -8 -6 | 0.86 | 5/8 | 1.03 | 1 | 1/2 | 0.28 | 1.32 | 3/8 | 1 | 0.96 | 2.75 | 11/16 | 7/8 |
| RUTD-12-8-6 | -1210 -3 -8 -6 | 0.86 | 3/4 | 1.17 | 1-1/16 | 3/8 | 0.28 | 1.57 | 1/2 | 1-1/8 | 0.96 | 3.14 | 7/8 | 11/16 |
| RUTD-12-10-6 | -1210 -3 -10 -6 | 0.86 | 3/4 | 1.16 | 1-1/16 | 3/8 | 0.28 | 1.56 | 5/8 | 1-1/8 | 0.96 | 3.12 | 1 | 11/16 |
| RUTD-12-10-8 | -1210 -3 -10 -8 | 0.86 | 3/4 | 1.16 | 1-1/16 | 1/2 | 0.41 | 1.56 | 5/8 | 1-1/8 | 0.96 | 3.12 | 1 | 7/8 |
| RUTD-14-8-12 | -1410 -3 -8 -12 | 0.86 | 7/8 | 1.36 | 1-3/8 | 3/4 | 0.41 | 1.76 | 1/2 | 1-1/4 | 1.02 | 3.52 | 7/8 | 1-1/8 |
| RUTD-14-10-6 | -1410 -3 -10 -6 | 0.86 | 7/8 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 5/8 | 1-1/4 | 1.02 | 3.52 | 1 | 11/16 |
| RUTD-14-12-6 | -1610 -3 -8 -4 | 0.86 | 7/8 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 3/4 | 1-1/4 | 1.02 | 3.52 | 1-1/8 | 11/16 |
| RUTD-14-12-8 | -1410 -3 -12 -4 | 0.86 | 7/8 | 1.36 | 1-3/8 | 1/2 | 0.41 | 1.76 | 3/4 | 1-1/4 | 1.02 | 3.52 | 1-1/8 | 7/8 |
| RUTD-16-8-4 | -1610 -3 -8 -4 | 1.04 | 1 | 1.36 | 1-3/8 | 1/4 | 0.19 | 1.76 | 1/2 | 1-1/2 | 1.23 | 3.70 | 7/8 | 9/16 |
| RUTD-16-8-6 | -1610 -3 -8 -6 | 1.04 | 1 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 1/2 | 1-1/2 | 1.23 | 3.70 | 7/8 | 11/16 |
| RUTD-16-10-6 | -1610 -3 -10 -6 | 1.04 | 1 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 5/8 | 1-1/2 | 1.23 | 3.70 | 1 | 11/16 |
| RUTD-16-12-8 | -1610 -3 -12 -8 | 1.04 | 1 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 3/4 | 1-1/2 | 1.23 | 3.69 | 1-1/8 | 11/16 |
| RUTD-16-12-10 | -1610 -3 -12 -10 | 1.04 | 1 | 1.36 | 1-3/8 | 1/2 | 0.41 | 1.76 | 3/4 | 1-1/2 | 1.23 | 3.70 | 1-1/8 | 7/8 |
| RUTD-16-14-4 | -1610 -3 -14 -4 | 1.04 | 1 | 1.36 | 1-3/8 | 5/8 | 0.50 | 1.76 | 3/4 | 1-1/2 | 1.23 | 3.70 | 1-1/8 | 1 |
| RUTD-16-14-6 | -1610 -3 -14 -6 | 1.04 | 1 | 1.36 | 1-3/8 | 1/4 | 0.19 | 1.76 | 7/8 | 1-1/2 | 1.23 | 3.70 | 1-1/4 | 9/16 |
| RUTD-16-14-8 | -1610 -3 -14 -8 | 1.04 | 1 | 1.36 | 1-3/8 | 3/8 | 0.28 | 1.76 | 7/8 | 1-1/2 | 1.23 | 3.70 | 1-1/4 | 11/16 |
| RUTD-16-14-12 | -1610 -3 -14 -12 | 1.04 | 1 | 1.36 | 1-3/8 | 1/2 | 0.41 | 1.76 | 7/8 | 1-1/2 | 1.23 | 3.70 | 1-1/4 | 7/8 |
| RUTD-16-12-6 | -1610 -3 -12 -6 | 1.04 | 1 | 1.36 | 1-3/8 | 3/4 | 0.62 | 1.76 | 7/8 | 1-1/2 | 1.23 | 3.70 | 1-1/4 | 1-1/8 |
Material of Construction
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
| Alloy Steel | ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Price List of Reducing Tee
Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Reducing Tee are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Reducing Tee.
Reducing Tee - Industries & Applications
Our Reducing Tee is used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Available Stock of Reducing Tee
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Reducing Tee.
How to Buy Reducing Tee
Jaydeep Steels is a leading stockist, distributor, and supplier of Reducing Tee from India. We maintain huge stocks and you can easily buy Reducing Tee and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Reducing Union Tee from Jaydeep Steels.
Reducing Tee Exporter:
Exporting Reducing Tee to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
