Male Run Tee

Most Recognized Male Run Tee Pipe Fitting Manufacturer, Male Run Tee Instrumentation Pipe Fitting, Male Run Tee Connector, Male Run Tee Stockist, Male Run Tee Adapter, Male Run Tee Tubing, Male Run Tee with Ferrule Fittings Supplier

Stainless Steel Male Run Tee Fittings Stockist, Carbon Steel Male Run Tee Pipe Fittings, Nickel Alloy Male Run Tee Fittings, Alloy Steel Male Run Tee Pipes Fittings Exporter

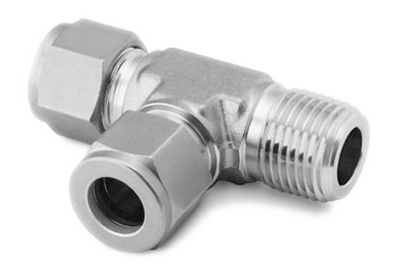

Male Run Tee is used to resist mechanical pull-out which is suitable for use with thin-wall piping/tubing. These fittings mainly used in refrigeration equipment, air compressor, and machinery. They look like an English letter ‘T’ that’s why they are known as Male Run Tee.

Here at, Jaydeep Steels we are manufacturing, supplying and exporting high-quality Male Run Tee Pipe Fittings that are available in various dimensions, shapes, and specifications. Our most trusted vendors supply high-quality raw products that we use to manufacture premium quality instrumentation fittings. Our comprehensive ranges of ferrule fittings are acknowledged not only in Indian as well as Overseas market.

SS 304 Male Run Tee, SS 316 Male Run Tee Fittings, Copper Nickel Union Fittings, Cu-Ni 90/10 Male Run Tee, Cu-Ni 70/30 Male Run Tee Fittings Stockholder

We manufacture Male Run Tee in diverse Indian as well as International standards like AISI, ASTM, ASME, DIN, JIS, BS, IS, etc. These fittings offered some silent attributes such as leak-proof connections, durable, excellent corrosion resistance, high tensile strength, easy to install and cost-effectiveness. Having high-quality attributes, they are used in a variety of different industries including paper & pulp, aerospace & defense, pharmaceuticals, power generation, and many others.

The offered ferrule fittings are also available in diverse material grades like Cupronickel 90/10, Cupronickel 70/30, Stainless Steel 304, Stainless Steel 316, Carbon Steel, Alloy Steel and more. If you don’t find your required material in the list Please Contact Us today. Our dedicated team ready to help you out.

Technical Specification

Part no. Equivalent Part no. Type 1 Equivalent part no Type 2 ODT-ØT(INCHES) LX NPT MALE PIPE SIZE P BODY HEX F C Ø E LY D NUT HEX W L1
2 – MRTD – 2N -200 – 3 – 2TMT 2MRT2N 1/8 0.93 1/8 9/16 0.60 0.09 0.70 0.50 7/16 1.63
2 – MRTD – 4N -200 – 3 – 4TMT 2MRT4N 1/8 0.97 1/4 9/16 0.60 0.09 0.92 0.50 7/16 1.89
3 – MRTD – 2N -300 – 3 – 2TMT 3MRT2N 3/16 0.96 1/8 9/16 0.63 0.12 0.70 0.54 7/16 1.66
4 – MRTD – 2N -400 – 3 – 2TMT 4MRT2N 1/4 1.06 1/8 9/16 0.70 0.19 0.74 0.60 9/16 1.80
4 – MRTD – 4N -400 – 3 – 4TMT 4MRT4N 1/4 1.06 1/4 9/16 0.70 0.19 0.92 0.60 9/16 1.98
5 – MRTD – 2N -500 – 3 – 2TMT 5MRT2N 5/16 1.17 1/8 5/8 0.73 0.19 0.82 0.64 5/8 1.99
5 – MRTD – 4N -500 – 3 – 4TMT 5MRT4N 5/16 1.17 1/4 5/8 0.73 0.25 1.01 0.64 5/8 2.18
6 – MRTD – 4N -600 – 3 – 2TMT 6MRT4N 3/8 1.2 1/4 5/8 0.76 0.28 1.00 0.66 11/16 2.20
6 – MRTD – 6N -600 – 3 – 6TMT 6MRT6N 3/8 1.31 3/8 13/16 0.76 0.28 1.11 0.66 11/16 2.42
8 – MRTD – 6N -810 – 3 – 6TMT 8MRT6N 1/2 1.42 3/8 13/16 0.86 0.38 1.11 0.90 7/8 2.53
8 – MRTD – 8N -810 – 3 – 8TMT 8MRT8N 1/2 1.42 1/2 7/8 0.86 0.41 1.30 0.90 7/8 2.72
10 – MRTD – 8N -1010 – 3 – 8TMT 10MRT8N 5/8 1.5 1/2 15/16 0.86 0.47 1.38 0.96 1 2.88
12 – MRTD – 12N -1210 – 3 – 12TMT 12MRT12N 3/4 1.57 3/4 1-1/16 0.86 0.62 1.45 0.96 1-1/8 3.02
14 – MRTD – 12N -1410 – 3 – 12TMT 14MRT12N 7/8 1.76 3/4 1-3/8 0.86 0.62 1.50 1.02 1-1/4 3.26
16 – MRTD – 12N -1610 – 3 – 12TMT 16MRT12N 1 1.94 3/4 1-3/8 1.04 0.62 1.66 1.23 1-1/2 3.60
16 – MRTD – 16N -1610 – 3 – 16TMT 16MRT16N 1 1.94 1 1-3/8 1.04 0.88 1.84 1.23 1-1/2 3.78

Material of Construction

Monel Monel 400, Monel K500, Monel R-405
Nickel Nickel 200, Nickel 201
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy Incoloy 800, Inconel 800H, 800HT
Hastalloy Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19

Male Run Tee Dimension

Imperial Tubing

Tube O.D inch NPT thread C L P R W inch Min bore
inch mm inch mm inch mm inch mm mm inch mm
1/16 1/16 0.58 14.7 0.44 11.2 0.56 14.2 0.38 9.7 9.7 3/8 0.05 1.3
1/8 1/8 0.78 19.8 0.53 13.5 0.52 13.2 0.38 9.7 9.7 7/16 0.09 2.3
3/16 1/8 0.81 20.6 0.56 14.2 0.58 14.7 0.38 9.7 9.7 7/16 0.13 3.3
1/4 1/8 0.93 23.6 0.63 16.0 0.66 16.8 0.38 9.7 9.7 9/16 0.19 4.8
1/4 1/4 0.96 24.4 0.66 16.8 0.86 21.8 0.56 14.2 14.2 9/16 0.19 4.8
5/16 1/8 0.95 24.1 0.66 16.8 0.66 16.8 0.38 9.7 9.7 9/16 0.19 4.8
3/8 1/4 1.01 25.7 0.72 18.3 0.86 21.8 0.56 14.2 14.2 9/16 0.28 7.1
1/2 3/8 1.13 28.7 0.75 19.1 0.95 24.1 0.56 14.2 14.2 3/4 0.41 10
5/8 1/2 1.19 30.2 0.81 20.6 1.17 29.7 0.75 19.1 19.1 7/8 0.50 13
3/4 3/4 1.22 31.0 0.84 21.3 1.20 30.5 0.75 19.1 19.1 1.1/16 0.63 16
7/8 3/4 1.32 33.5 0.94 23.9 1.27 32.3 0.75 19.1 19.1 1.5/16 0.72 18
1 1 1.66 42.2 1.19 30.2 1.48 37.6 0.94 23.9 23.9 1.5/16 0.88 22

Metric Tubing

Tube O.D mm NPT thread C L P R W inch Min bore
mm
mm mm mm mm
6 1/8 17.7 16.0 16.8 9.5 9/16 4.8
6 1/4 17.7 16.0 21.8 14.3 9/16 4.8
8 1/8 18.6 16.8 16.8 9.5 9/16 4.8
10 1/4 19.5 19.0 24.1 14.3 3/4 7.1
12 3/8 22.0 19.0 24.1 14.3 3/4 9.5
12 1/2 22.0 20.6 29.7 19.0 7/8 9.5
16 1/2 22.0 20.6 29.7 19.0 7/8 12.7

Price List of Male Run Tee

Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Male Run Tee are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Male Run Tee.

Male Run Tee - Industries & Applications

Our Male Run Tee is used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries

Available Stock of Male Run Tee

We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Male Run Tee.

Click to send your requirement.

How to Buy Male Run Tee

Jaydeep Steels is a leading stockist, distributor, and supplier of Male Run Tee from India. We maintain huge stocks and you can easily buy Male Run Tee and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Male Run Tee from Jaydeep Steels.

Male Run Tee Exporter:

Exporting Male Run Tee to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes  Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy,  Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia,  South Korea, South Africa, Sri Lanka, Syria,  Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
