Male Branch Tee
Most Predominant Male Branch Tee Pipe Fitting Manufacturer, Male Branch Tee Instrumentation Pipe Fitting, Male Branch Tee Connector, Male Branch Tee Stockist, Male Branch Tee Adapter, Male Branch Tee Tubing, Male Branch Tee with Ferrule Fittings Supplier
Stainless Steel Male Branch Tee Fittings Stockist, Carbon Steel Male Branch Tee Pipe Fittings, Nickel Alloy Male Branch Tee Fittings, Alloy Steel Male Branch Tee Pipes Fittings Exporter
We are offering premium grade Male Branch Tee Pipe Fittings to customers across India and worldwide. Jaydeep Steels is well known for manufacturing, exporting, stocking and supplying these premium quality instrumentation fittings with competitive prices in the market. By using high-quality raw materials and modern technology we manufacture these ferrule fittings.

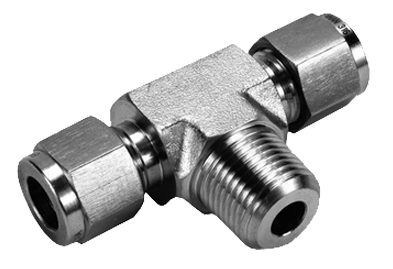

Male Branch Tee is used to make a connection between three pipes/tubes that are right-angled. There is one supply line that has an outer thread and the other has two lines are delivery lines with inner thread. They provide an easy, quick, safe and reliable connection between male branch tee and other pipe/tubes.
Male Branch Tee, Male Branch Tee Manufacturer, Male Branch Tee Exporters
SS 304 Male Branch Tee, SS 316 Male Branch Tee Fittings, Copper Nickel Union Fittings, Cu-Ni 90/10 Male Branch Tee, Cupronickel 70/30 Male Branch Tee Fittings Stockholder
We designed our Male Branch Tee according to all Indian and International standards like AISI, ASTM, ASME, BS, IS, DIN, JIS, etc. The offered fittings possess some silent features such as leak-proof connection, durable, easy to install, vibration resistance, variety of end connection & patterns, and cost-effectiveness. These ferrule fittings are delivery in standard as well as customized dimensions as per customer’s drawing and specifications.
These instrumentation fittings are used in diverse industries including oil & gas, chemical & cement process, air conditioning & refrigeration industries, electrical industries and many more. We have the largest stock of these fittings in various material grades such as stainless steel 304, stainless steel 316, 70/30 cupronickel, 90/10 cupronickel and many. Please Contact Us today to avail FREE estimation on these fittings. We can assure you of the best buy price.
Technical Specification
| Part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | NUT HEX W | D | L1 |
| 2-MBTD-2N | -200 – 3 – 2TTM | 2MBT2N | 1/8 | 0.70 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.86 |
| 2-MBTD-4N | -200 – 3 – 4TTM | 2MBT4N | 1/4 | 0.92 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.94 |
| 3-MBTD-2N | -300 – 3 – 2TTM | 3MBT2N | 1/8 | 0.70 | 3/16 | 0.12 | 9/16 | 0.63 | 7/16 | 0.54 | 1.92 |
| 4-MBTD-2N | -400 – 3 – 2TTM | 4MBT2N | 1/8 | 0.74 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 4-MBTD-4N | -400 – 3 – 4TTM | 4MBT4N | 1/4 | 0.92 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 5-MBTD-2N | -500 – 3 – 2TTM | 5MBT2N | 1/8 | 0.82 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 5-MBTD-4N | -500 – 3 – 4TTM | 5MBT4N | 1/4 | 1.01 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 6-MBTD-4N | -600 – 3 – 4TTM | 6MBT4N | 1/4 | 1.00 | 3/8 | 0.28 | 13/16 | 0.86 | 11/16 | 0.66 | 2.40 |
| 6-MBTD-6N | -600 – 3 – 6TTM | 6MBT6N | 3/8 | 1.11 | 3/8 | 0.28 | 13/16 | 0.76 | 11/16 | 0.66 | 2.62 |
| 8-MBTD-6N | -810 – 3 – 8TTM | 8MBT6N | 3/8 | 1.11 | 1/2 | 0.38 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 8-MBTD-8N | -810 – 3 – 8TTM | 8MBT8N | 1/2 | 1.30 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 10-MBTD-8N | -1010 – 3 – 8TTM | 10MBT8N | 1/2 | 1.41 | 5/8 | 0.47 | 1 | 0.86 | 1 | 0.96 | 3.06 |
| 12-MBTD-12N | -1210 – 3 – 12TTM | 12MBT12N | 3/4 | 1.45 | 3/4 | 0.62 | 1-1/16 | 0.86 | 1-1/8 | 0.96 | 3.14 |
| 14-MBTD-12N | -1410 – 3 – 12TTM | 14MBT12N | 3/4 | 1.50 | 7/8 | 0.62 | 1-3/8 | 0.86 | 1-1/4- | 1.02 | 3.52 |
| 16-MBTD-12N | -1610 – 3 -12TTM | 16MBT12N | 3/4 | 1.66 | 1 | 0.62 | 1-3/8 | 1.04 | 1-1/2 | 1.23 | 3.88 |
| 16-MBTD-16N | -1610 – 3 -16TTM | 16MBT16N | 1 | 1.84 | 1 | 0.88 | 1-3/8 | 1.04- | 1-1/2 | 1.23 | 3.88 |
Material of Construction
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
| Alloy Steel | ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
 |
 |

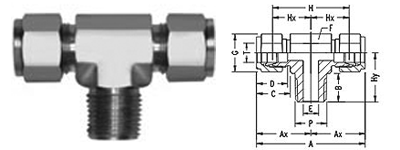

Male Branch Tee Dimension
| Imperial Tubing | |||||||||||||||||||
| Tube O.D inch | NPT thread | A | C | H | L | R | W inch | Min bore | Min. Bore | ||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | |||||||
| 1/8 | 1/8 | 1.82 | 46.2 | 0.91 | 23.1 | 0.72 | 18.3 | 0.66 | 16.8 | 0.34 | 8.6 | 5/16 | 0.09 | 0.09 | 2.3 | ||||
| 3/16 | 1/8 | 1.88 | 47.8 | 0.94 | 24.6 | 0.75 | 19.1 | 0.69 | 17.5 | 0.38 | 9.7 | 7/16 | 0.13 | 0.13 | 3.3 | ||||
| 1/4 | 1/8 | 2.03 | 51.6 | 1.02 | 25.9 | 0.78 | 19.8 | 0.72 | 18.3 | 0.38 | 9.7 | 7/16 | 0.19 | 0.19 | 4.8 | ||||
| 1/4 | 1/4 | 2.15 | 54.6 | 1.08 | 27.4 | 0.94 | 23.9 | 0.78 | 19.5 | 0.56 | 14.2 | 9/16 | 0.19 | 0.19 | 4.8 | ||||
| 5/16 | 1/8 | 2.21 | 56.1 | 1.10 | 27.9 | 0.81 | 20.6 | 0.81 | 20.6 | 0.38 | 9.7 | 9/16 | 0.19 | 0.19 | 4.8 | ||||
| 5/16 | 1/4 | 2.21 | 56.1 | 1.10 | 27.9 | 1.00 | 25.4 | 0.81 | 20.6 | 0.56 | 14.2 | 9/16 | 0.25 | 0.25 | 6.4 | ||||
| 3/8 | 1/4 | 2.27 | 57.7 | 1.13 | 28.9 | 1.00 | 25.4 | 0.84 | 21.3 | 0.56 | 14.2 | 9/16 | 0.28 | 0.28 | 7.1 | ||||
| 3/8 | 3/8 | 2.53 | 64.3 | 1.26 | 32.0 | 1.13 | 28.7 | 0.97 | 24.6 | 0.56 | 14.2 | 3/4 | 0.28 | 0.28 | 7.1 | ||||
| 1/2 | 3/8 | 2.71 | 68.8 | 1.35 | 34.3 | 1.13 | 28.7 | 0.97 | 24.6 | 0.56 | 14.2 | 3/4 | 0.41 | 0.41 | 10 | ||||
| 1/2 | 1/2 | 2.83 | 71.9 | 1.41 | 35.8 | 1.31 | 33.3 | 1.03 | 26.6 | 0.75 | 19.1 | 7/8 | 0.41 | 0.41 | 10 | ||||
| 5/8 | 1/2 | 2.89 | 73.4 | 1.44 | 36.6 | 1.34 | 34.0 | 1.08 | 26.9 | 0.75 | 19.1 | 7/8 | 0.50 | 0.5 | 13 | ||||
| 3/4 | 3/4 | 3.09 | 78.5 | 1.54 | 39.1 | 1.50 | 38.1 | 1.16 | 29.5 | 0.75 | 19.1 | 1.1/16 | 0.63 | 0.63 | 16 | ||||
| 7/8 | 3/4 | 3.33 | 84.6 | 1.66 | 42.2 | 1.50 | 38.1 | 1.28 | 32.5 | 0.75 | 19.1 | 1.5/16 | 0.72 | 0.72 | 18 | ||||
| 1 | 3/4 | 3.56 | 90.4 | 1.78 | 45.2 | 1.66 | 42.2 | 1.31 | 33.3 | 0.75 | 19.1 | 1.5/16 | 0.72 | 0.72 | 18 | ||||
| 1 | 1 | 3.56 | 90.4 | 1.78 | 45.2 | 1.84 | 46.7 | 1.31 | 33.3 | 0.94 | 23.9 | 1.5/16 | 0.88 | 0.88 | 22 | ||||
| Metric Tubing | |||||||||||||||||||
| Tube O.D mm | NPT thread | A | C | H | L | R | W inch | Min bore mm | |||||||||||
| mm | mm | mm | mm | mm | |||||||||||||||
| 6 | 1/8 | 51.6 | 25.8 | 19.8 | 18.3 | 9.7 | 7/16 | 4.8 | |||||||||||
| 6 | 1/4 | 54.6 | 27.3 | 23.8 | 19.8 | 14.2 | 9/16 | 4.8 | |||||||||||
| 8 | 1/8 | 56.2 | 28.1 | 20.6 | 20.6 | 9.7 | 9/16 | 4.8 | |||||||||||
| 8 | 1/4 | 56.2 | 28.1 | 25.4 | 20.6 | 14.2 | 9/16 | 6.4 | |||||||||||
| 10 | 1/4 | 66.0 | 33.0 | 28.6 | 25.4 | 14.2 | 3/4 | 7.9 | |||||||||||
| 10 | 3/8 | 66.0 | 33.0 | 28.6 | 25.4 | 14.2 | 3/4 | 7.9 | |||||||||||
| 12 | 1/4 | 69.4 | 34.7 | 28.6 | 24.6 | 14.2 | 3/4 | 9.5 | |||||||||||
| 12 | 3/8 | 69.4 | 34.7 | 28.6 | 24.6 | 14.2 | 3/4 | 9.5 | |||||||||||
| 12 | 1/2 | 72.6 | 36.3 | 33.3 | 26.2 | 19.1 | 7/8 | 9.5 | |||||||||||
Price List of Male Branch Tee
Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Male Branch Tee are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Male Branch Tee.
Male Branch Tee - Industries & Applications
Our Male Branch Tee is used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Stock of Male Branch Tee
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Male Branch Tee.
How to Buy Male Branch Tee
Jaydeep Steels is a leading stockist, distributor, and supplier of Male Branch Tee from India. We maintain huge stocks and you can easily buy Male Run Tee and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Male Branch Tee from Jaydeep Steels.
Male Branch Tee Exporter:
Exporting Male Branch Tee to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
